• 16" x 7" styled steel wheels w/full sport wheel covers
• LT225/75R16E all-season BSW tires
• Spare tire and wheel
• Black painted front/rear bumpers w/front lower black plastic valence
• Sealed-beam halogen headlights
• Aerotype manual mirrors w/RH convex lens
• Solar tinted glass
• Interval windshield wipers
• 60/40 hinged swing-out side cargo door

• AM/FM stereo-inc: digital clock, (4) speakers

• 12-passenger seating
• Front bucket seats
• (2) 3-passenger intermediate bench seats
• (1) 4-passenger rear bench seat
• Graphite vinyl seat trim
• Front inboard armrest
• Full-length black vinyl floor covering
• Black plastic stepwell pads
• Tilt steering wheel
• Tire pressure monitoring system (TPMS)
• Front air conditioning
• (2) 12-volt pwr points-inc: (1) instrument panel, (1) located rear of driver

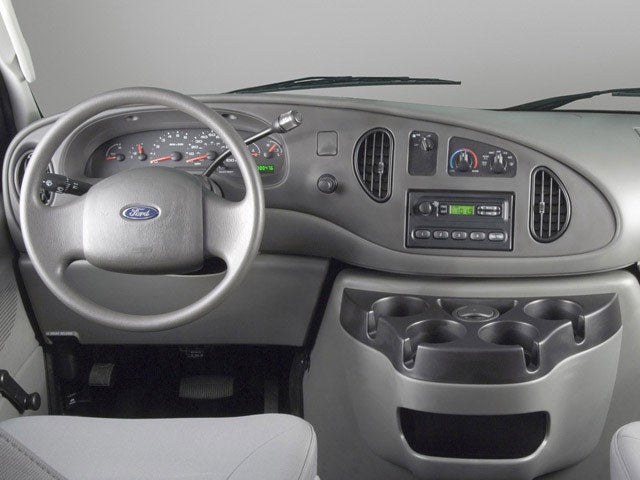

• Medium flint instrument panel w/tachometer
• Medium flint plastic front door trim panels
• Medium flint polypropylene side/rear quarter door trim panels
• Black cowl side trim panels
• Day/night rearview mirror
• Medium flint full-length acoustical cloth headliner
• Medium flint cloth/vinyl sunvisors
• Dual A-pillar grab handles
• Front dome light
• Rear cargo light
• Courtesy light switches for all doors
• Medium flint coat hooks

• 4-wheel anti-lock braking system (ABS)
• Driver & front passenger 2nd generation airbags
• Front height adjustable 3-point safety belts
• Rear 3-point shoulder/lap safety belts in all positions
• AdvanceTrac w/RSC
• Brake/shift interlock
• Dual note electric horn

5.4L EFI V8 ENGINE

• (STD)

• GVWR: 8,800 lbs Payload Package
• AM/FM radio
• Air Conditioning
• Power steering
• Traction control
• 4-Wheel Disc Brakes
• ABS brakes
• Dual front impact airbags
• Front anti-roll bar
• Front wheel independent suspension
• Low tire pressure warning
• Electronic Stability Control
• Driver door bin
• Passenger seat mounted armrest
• Tachometer
• Tilt steering wheel
• Voltmeter
• 3rd row seats: bench
• 4th-Row Bench Seat
• Driver's Seat Mounted Armrest
• Front Bucket Seats
• Passenger door bin
• 16" Full Sport Wheel Covers
• 16" x 7" Steel Wheels
• Variably intermittent wipers
• 3.73 Axle Ratio

• Vehicle
• Rear Door Type: Panel
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 650
• Maximum Alternator Capacity (amps): 115
• Maximum Alternator Watts: 1725
• Cooling System
• Total Cooling System Capacity (qts): 28.8
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4400
• Gross Axle Wt Rating - Rear (lbs): 5545
• Curb Weight - Front (lbs): 3189
• Curb Weight - Rear (lbs): 2665
• Gross Vehicle Weight Rating Cap (lbs): - TBD -
• Gross Combined Wt Rating (lbs): 13000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6700
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 670
• Suspension
• Suspension Type - Front: Single channel
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 3900
• Spring Capacity - Rear (lbs): 5545
• Axle Type - Front: Twin-I-Beam
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 4600
• Axle Capacity - Rear (lbs): 6340
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.00
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.03 x - TBD -
• Rear Brake Rotor Diam x Thickness (in): 12.9 x - TBD -
• Tires
• Front Tire Order Code: T37
• Rear Tire Order Code: T37
• Spare Tire Order Code: T37
• Front Tire Size: LT225/75R16E
• Rear Tire Size: LT225/75R16E
• Spare Tire Size: LT225/75R16E
• Front Tire Capacity (lbs): 2680
• Rear Tire Capacity (lbs): 2680
• Spare Tire Capacity (lbs): 2680
• Revolutions/Mile @ 45 mph - Front: 709
• Revolutions/Mile @ 45 mph - Rear: 709
• Revolutions/Mile @ 45 mph - Spare: 709
• Wheels
• Front Wheel Size (in): 16 x 7
• Rear Wheel Size (in): 16 x 7
• Spare Wheel Size (in): 16 x 7
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.0
• Turning Diameter - Curb to Curb (ft): 48.0
• Turning Diameter - Wall to Wall (ft): 50.2
• Frame
• Frame Type: 1 Channel Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 35
• Fuel Tank Location: Midship
• Doors
• Side Door Type: Hinged
• Exterior Dimensions
• Wheelbase (in): 138.0
• Length, Overall w/rear bumper (in): 212.0
• Width, Max w/o mirrors (in): 70.1
• Height, Overall (in): 83.4
• Overhang, Front (in): 35.1
• Overhang, Rear w/bumper (in): 43.9
• Ground to Top of Load Floor (in): 30.7
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Rear Door Opening Height (in): 46.8
• Rear Door Opening Width (in): 54.4
• Side Door Opening Height (in): 48.3
• Side Door Opening Width (in): 47.1
• Step Up Height - Front (in): - TBD -
• Step Up Height - Side (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): - TBD -
• Cargo Area Length @ Floor to Seat 1 (in): 120.6
• Cargo Area Length @ Floor to Seat 2 (in): 87.4
• Cargo Area Length @ Floor to Seat 3 (in): 53.9
• Cargo Area Length @ Floor to Seat 4 (in): 20.8
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 51.1
• Cargo Box (Area) Height (in): 53.1
• Cargo Volume to Seat 1 (ft³): 236.5
• Cargo Volume to Seat 2 (ft³): - TBD -
• Cargo Volume to Seat 3 (ft³): - TBD -
• Cargo Volume to Seat 4 (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 12
• Front Head Room (in): 42.5
• Front Leg Room (in): 40.0
• Front Shoulder Room (in): 68.1
• Front Hip Room (in): 65.6
• Second Head Room (in): 40.2
• Second Leg Room (in): 38.9
• Second Shoulder Room (in): 70.5
• Second Hip Room (in): 66.5
• Third Head Room (in): 40.1
• Third Leg Room (in): 41.4
• Third Shoulder Room (in): 71.2
• Third Hip Room (in): 66.9
• Fourth Head Room (in): 38.9
• Fourth Leg Room (in): 40.6
• Fourth Shoulder Room (in): 69.4
• Fourth Hip Room (in): 66.1
• Summary

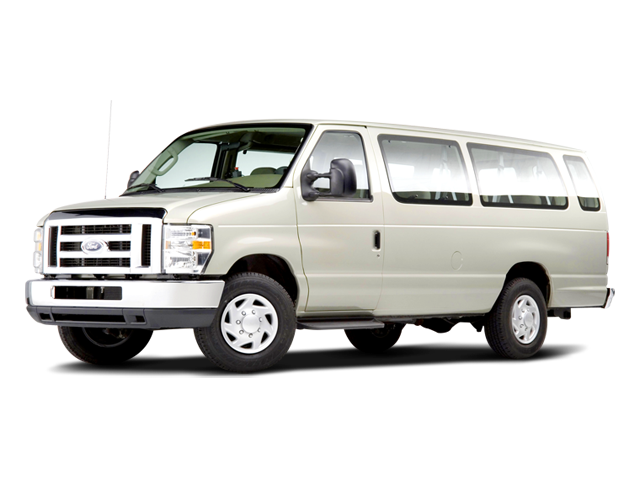

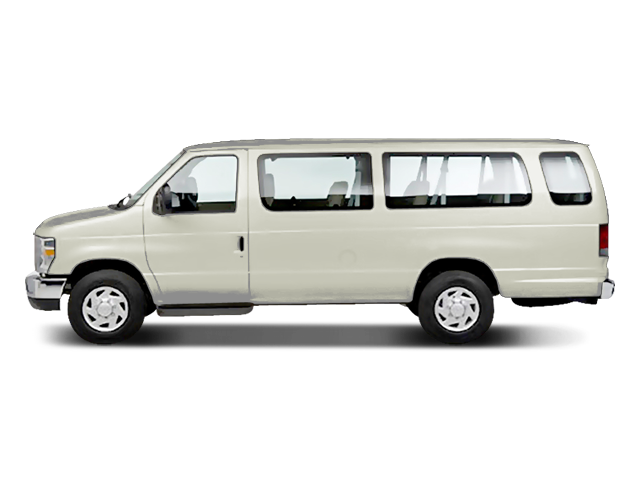

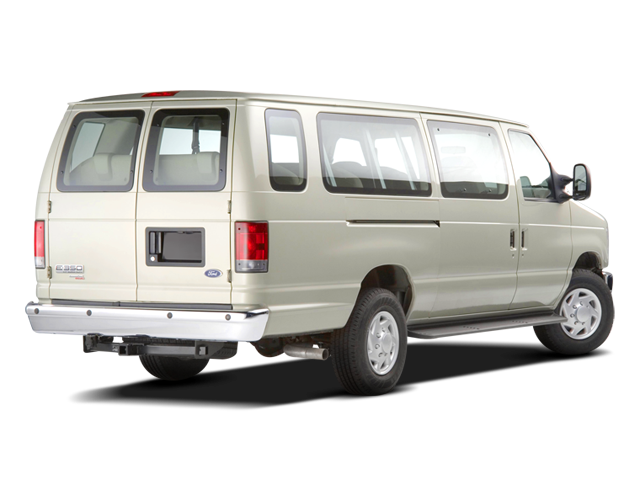

• Vehicle Name: Ford Econoline Wagon
• Body Style: HD Reg Passenger Van
• Body Code: 138.0" WB
